Deploying migrations from Atlas Cloud

Deploying without Atlas Cloud​

A common way to deploy migrations using Atlas (or any other migration tool) is similar to this:

  • When changes are merged to the main branch, a CI/CD pipeline is triggered.
  • The pipeline builds an artifact (usually a Docker image) that includes the migration directory content and Atlas itself.
  • The artifact is pushed to a registry.
  • The deployment process is configured to use this newly created image to run the migrations against the production database.

This process is a common practice, but it requires setting up a CI/CD pipeline (including storage, permissions, and other glue) for each service, adding another layer of complexity.

Why deploy from Atlas Cloud?​

Atlas Cloud streamlines deploying migrations by providing a single place to manage migrations for all your services. After connecting your migration directory to Atlas Cloud, it is automatically synced to a central location on every commit to your main branch. Once this setup (which takes less than one minute) is complete, you can deploy migrations from Atlas Cloud to any environment with a single command (or using popular CD tools such as Kubernetes and Terraform).

Deploying migrations from Atlas Cloud​

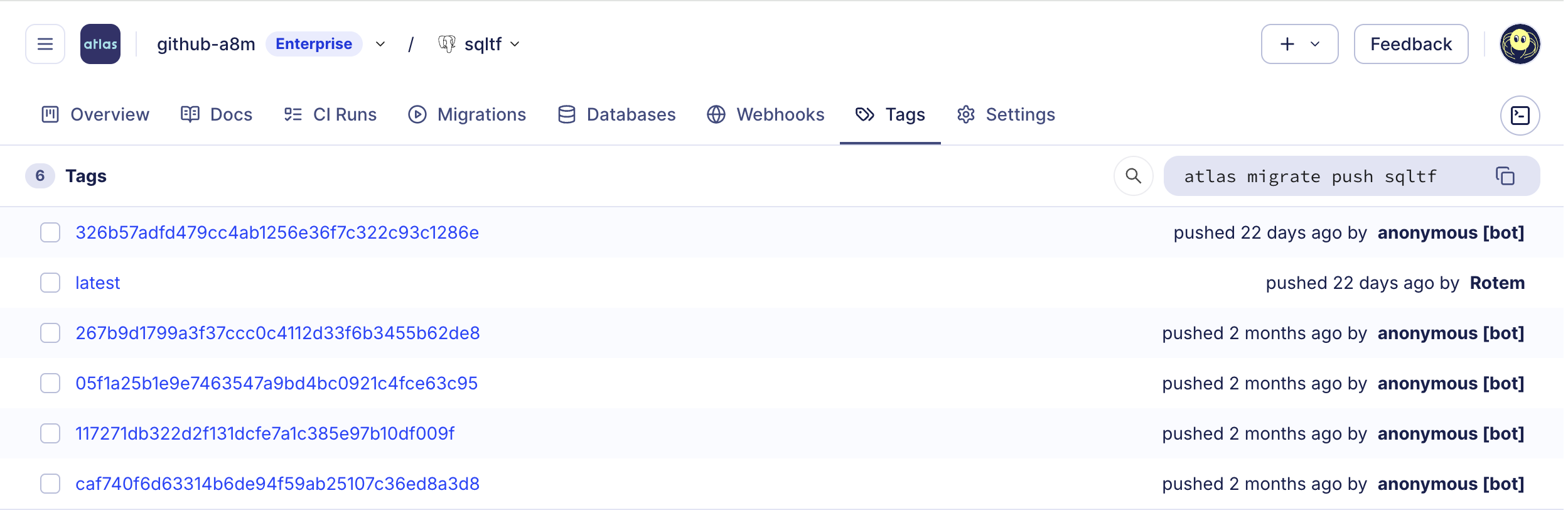

To read the migration directory from the Schema Registry, use the atlas:// scheme in the migration URL as follows:

atlas.hcl
env {
  // Set environment name dynamically based on --env value.
  name = atlas.env
  migration {
    // In this example, the directory is named "myapp".
    dir = "atlas://myapp"
  }
}

Now you can deploy migrations from Atlas Cloud using the following command:

export ATLAS_TOKEN="<ATLAS_TOKEN>"
atlas migrate apply \
  --url "<DATABASE_URL>" \
  --config file://path/to/atlas.hcl \
  --env prod

Visualizing Migration Runs​

Schema migrations are an integral part of application deployments, yet the setup might vary between different applications and teams. Some teams may prefer using init-containers, while others run migrations from a structured CD pipeline. There are also those who opt for Helm upgrade hooks or use our Kubernetes operator. The differences also apply to databases. Some applications work with one database, while others manage multiple databases, often seen in multi-tenant applications.

However, across all these scenarios, there's a shared need for a single place to view and track the progress of executed schema migrations. This includes triggering alerts and providing the means to troubleshoot and manage recovery if problems arise.

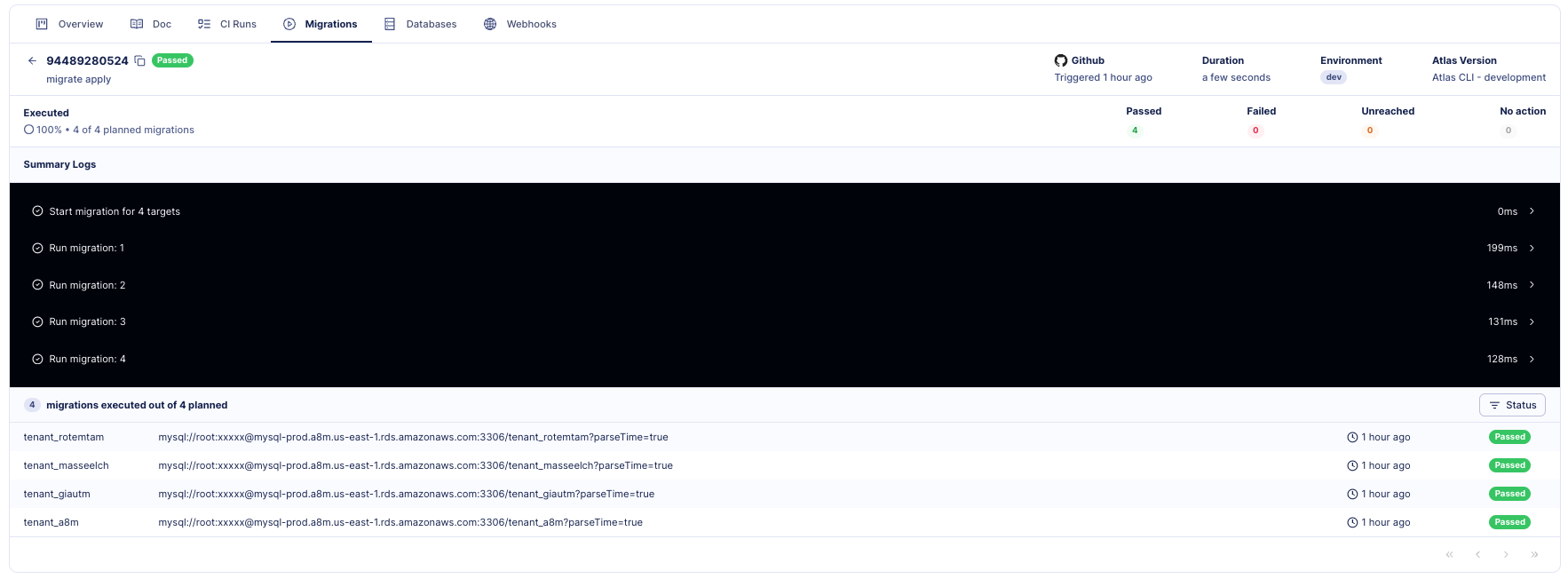

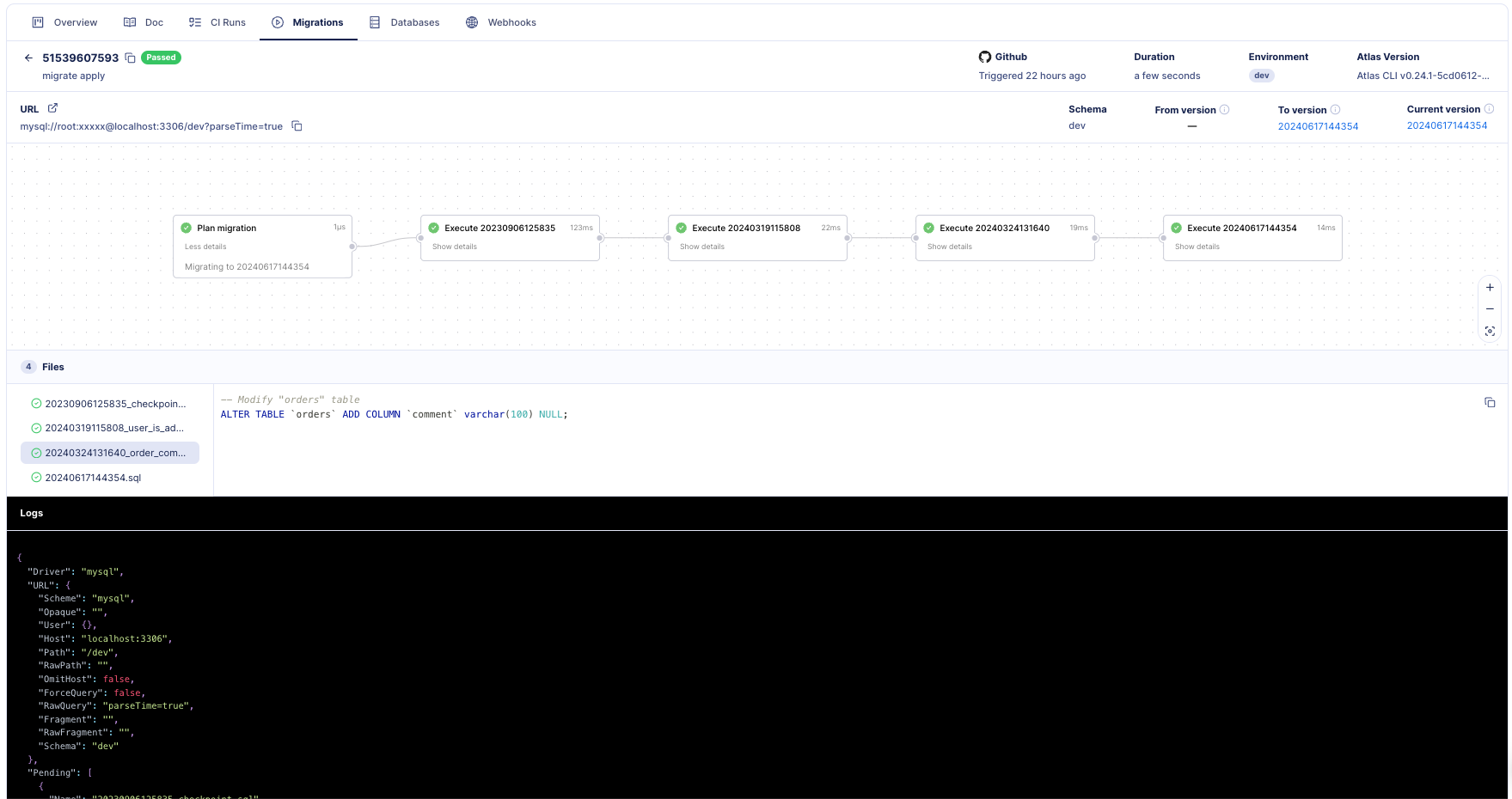

When you use the configuration above with a valid token, Atlas will log migration runs in your cloud account. Here's a demonstration of how it looks in action:
