Connect Migration Directories

The following guide explains how to connect a migration directory to Atlas Cloud. Once connected, Atlas provides a list of features enabling users to seamlessly audit their migration history, run continuous migration linting on their PRs, monitor executed migrations and receive webhook notifications, among other capabilities.

To get started, you need to sync your migration directory to the Schema Registry in Atlas Cloud.

Login to Atlas Cloud​

Firstly, you'll need to log in to Atlas. If it's your first time, you'll be prompted to create both an account and a workspace (organization):

atlas login

Push the migration directory​

After logging in, we can push the migration directory to Atlas Cloud to persist its state. This allows it to be read by Atlas CLI later on in our CI/CD pipelines or by other developers on our team.

atlas migrate push app \
  --dev-url "docker://postgres/15/dev?search_path=public"
note

For the purpose of this example, we have named our migration directory app, but you can choose a different name containing only alphanumeric characters, dashes, and underscores.

atlas migrate push

Migration Directory created with atlas migrate push

Optional: Backup repositories ​

You can configure backup repositories for your migration directory in atlas.hcl. When set, Atlas replicates atlas migrate push to these backup URLs in addition to Atlas Cloud.

atlas.hcl
env "prod" {
  migration {
    dir = "atlas://app"
    repo {
      name = "app"
      backup = [
        "s3://my-bucket/atlas-backup?region=us-east-1",
        "file:///var/lib/atlas/backup",
      ]
    }
  }
}

Atlas tries backup URLs in order when reading an atlas:// directory and falls back to them automatically if connectivity to Atlas Cloud is interrupted. If Atlas Cloud push fails but at least one backup succeeds, Atlas reports a warning and the command still succeeds.

Backup provider URLs​

The migration.repo.backup field accepts blob bucket URLs. Atlas currently supports common providers such as AWS S3, Google Cloud Storage, and Azure Blob Storage.

atlas.hcl
env "prod" {
  migration {
    repo {
      name = "app"
      backup = [
        "s3://my-atlas-backups/migrations?region=us-east-1",
      ]
    }
  }
}

Authentication options:

  • Standard AWS credentials via environment variables (AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY, optionally AWS_SESSION_TOKEN).
  • Shared config/credentials files (~/.aws/credentials, ~/.aws/config).
  • IAM role when running on AWS infrastructure.

Setup CI​

After setting up your migration directory, the next step is to add Atlas to your CI pipeline. This ensures that the migration files are checked and reviewed before being merged into the main branch. Below are the supported CI platforms Atlas currently supports:

Setup CD​

Atlas Cloud streamlines deploying migrations by providing a single place to manage migrations for all your services. After connecting your migration directory to Atlas Cloud, it is automatically synced to a central location on every commit to your main branch. Once this setup (which takes less than one minute) is complete, you can deploy migrations from Atlas Cloud to any environment with a single command (or using popular CD tools such as Kubernetes and Terraform).

For more information, visit the Introduction to schema migrations deployments in the guides section.

Slack Integration​

You can use Slack Webhooks to receive updates in your Slack channel about schema changes, CI runs and deployment statuses of your migration directory. Make sure you have a Slack incoming webhook configured (you can create one here).

Select your migration directory, go to Webhooks tab.

Screenshot example

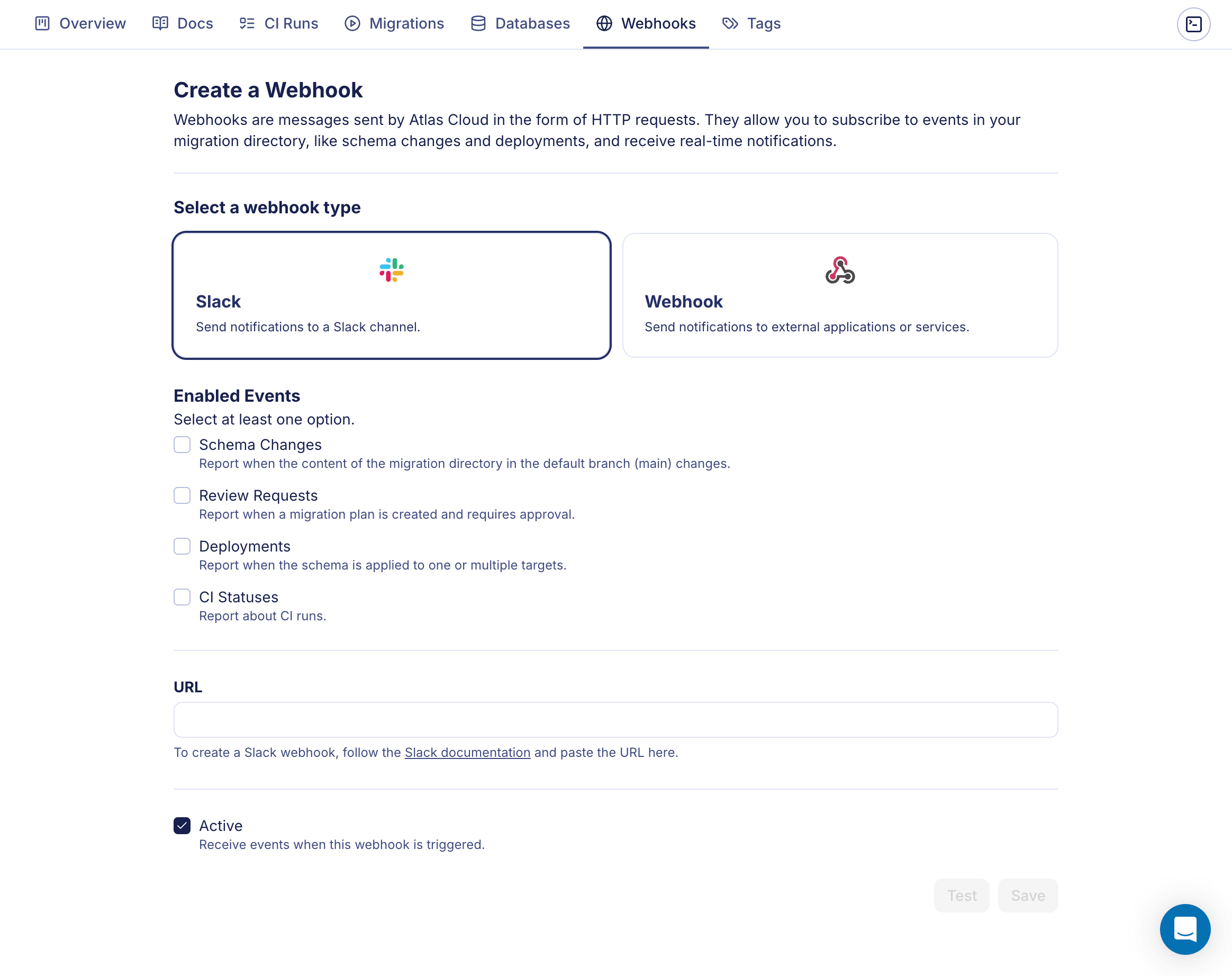

Screenshot of the Atlas Cloud webhooks settings page for a migration directory.

Select the Slack integration, choose the events you want to be notified about and insert your webhook URL. Click on Save to confirm or Test to test the webhook.

Once the Webhook is created, you will be redirected to the Webhooks page. Select a webhook to edit its configuration and to view its delivery history.

Screenshot example

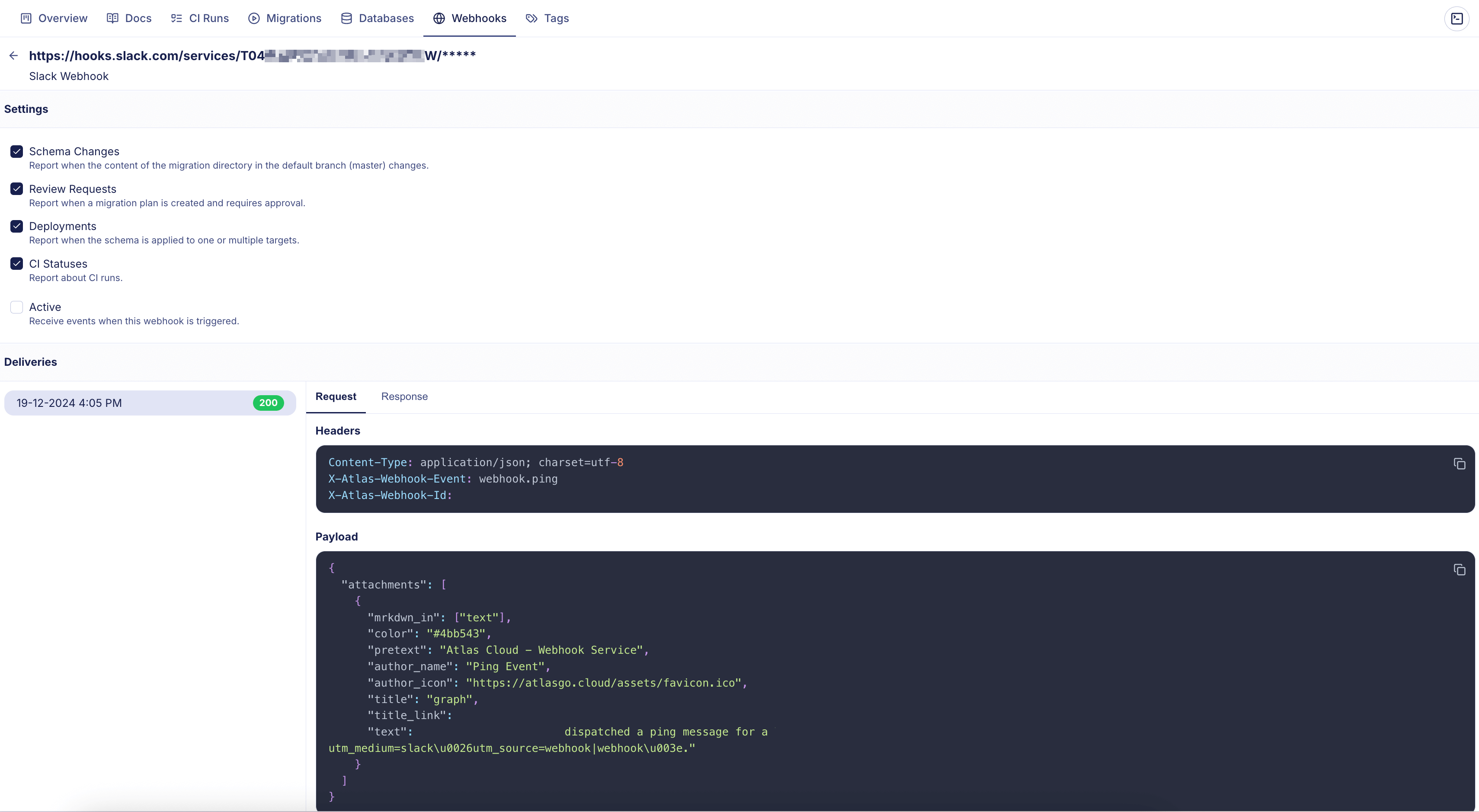

Screenshot of the Slack webhook configuration modal in Atlas Cloud, showing event triggers and delivery history.
